1、 Product Overview:

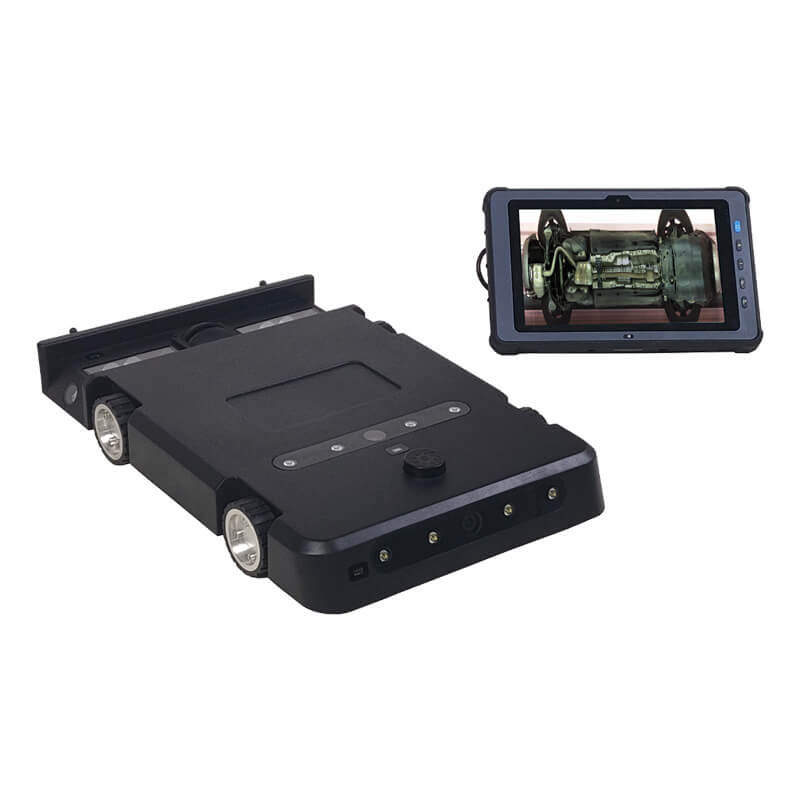

The ZJSC-CDJ03 intelligent vehicle bottom scanning robot system consists of a handheld terminal and a vehicle bottom scanning robot. Inspectors use handheld terminals to manipulate the robot, view real-time videos of the vehicle‘s underside, and control the robot to scan and image the vehicle‘s underside in order to detect suspicious objects in a timely manner.

The ZJSC-CDJ03 intelligent vehicle bottom scanning robot has the advantages of portability and high intelligence. It can achieve one click inspection without moving the vehicle to be inspected, intelligent scanning, and combined with license plate recognition, quickly calibrate suspicious vehicles, effectively preventing situations such as vehicle bottom bombs, illegal immigration, drug hiding, jailbreak tool hiding, illegal modification, and vehicle bottom oil leakage.

2、 Application environment:

This product is suitable for inspecting the chassis of vehicles in temporary security check areas such as large-scale events and checkpoints, as well as for inspecting subway carriages, tracks, etc. It is mainly used in scenarios such as subway carriages, large conferences, large parking lots, customs ports, etc. It is specifically designed for inspecting the chassis and seats of various vehicles; The robot checks the condition of the vehicle‘s bottom through wireless image transmission, detects and assists in eliminating suspicious dangerous goods under the vehicle.

3、 Product technical advantages:

Scan the bottom of the vehicle with a surface array and output images of the surface array scan.

The vehicle bottom scanning system outputs 4096P ultra high definition color images.

The real-time image of the vehicle bottom scanner is displayed while scanning, without waiting for the vehicle to completely pass by to view the condition of the vehicle bottom.

Ø Supports scanning vehicles of different chassis heights and scanning ultra long vehicles.

Built in multi-channel triggering unit, supporting bidirectional scanning for image output.

Equipped with a built-in license plate recognition camera to synchronize and check data.

Rich image post-processing capabilities, such as brightness, saturation, contrast, white balance, sharpening, and other functions.

Ø One click inspection function reduces the difficulty of operation.

Ø 360 ° automatic obstacle avoidance and collision avoidance, effectively protecting the robot.

Ultra thin design, with a total height of less than 8CM.

4、 Technical parameters:

Vehicle bottom scanning robot

1. Image resolution: 10000 x 4096

2. Remote control distance: ≤ 30 meters (open area)

3. Scanning speed: adjustable from 0 to 1.0m/s

4. Drive mode: 4-wheel drive differential steering

5. Turning radius: can rotate 360 ° in place

6. Scanning method: The vehicle is stationary, and the robot scans the bottom of the vehicle to form an image

7. Communication interface: Dual band WIFI

8. Continuous working time: ≥ 4h (dual detachable battery pack, replacement of holding battery)

9. Scannable vehicles: small, medium, and large vehicles

10. Work environment road requirements: Class IV or above highways (without major potholes)

11. Climbing angle: less than 5 degrees

12. Minimum ground clearance distance of the vehicle: 15mm

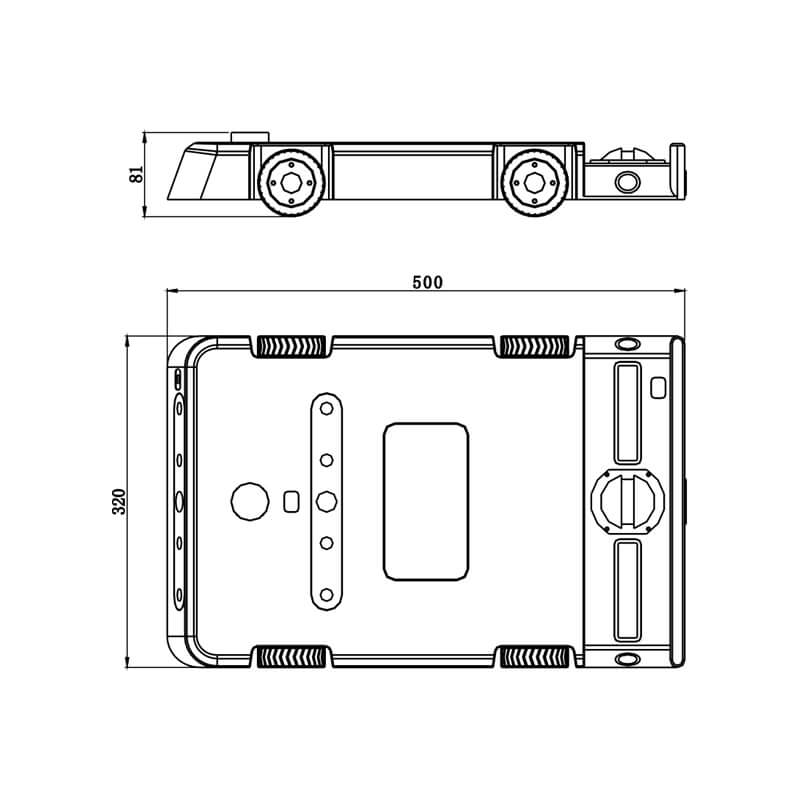

13. Product size: 500mm x 320mm x 81mm

14. Product weight: 7 KG

15. Working temperature: -20 ℃ -50 ℃

16. Waterproof rating: IP65

Three proof tablet

17. Monitor: 10.1-inch IPS screen, resolution: 1200x1920

18. Tablet configuration: CPU: Intel i5, Memory: 16GB, Hard drive: 256GB SSD

19. Battery life: ≥ 4h

20. System: Win 10

21. Power supply voltage: DC 19V

22. Working temperature: -20 ℃ -50 ℃

23. Waterproof rating: IP65

24. Product size: 278mm x 185mm x 22mm

25. Product weight: 1.2KG
