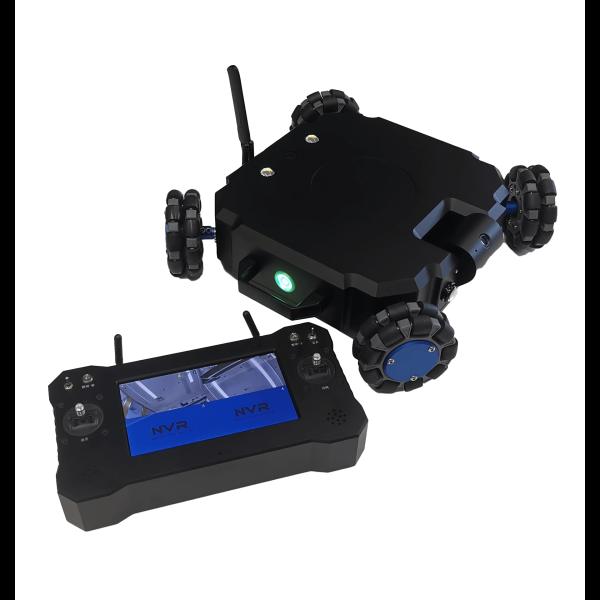

1. Product Overview:

The ZJSC-CDJ02 vehicle bottom inspection robot is primarily designed to detect any illegal modifications, concealed drugs, bombs, and other prohibited items or individuals beneath vehicle bottoms. It can also inspect areas inaccessible to humans, featuring flexible operability and strong portability, meeting various mobile and temporary inspection needs.

II. Application Environment:

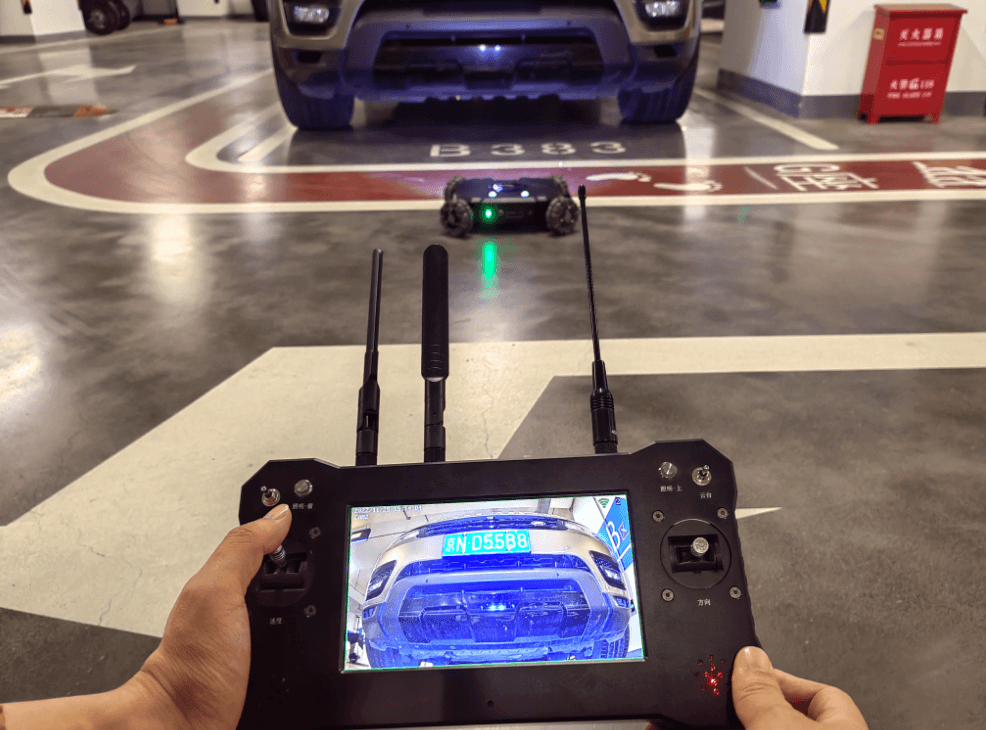

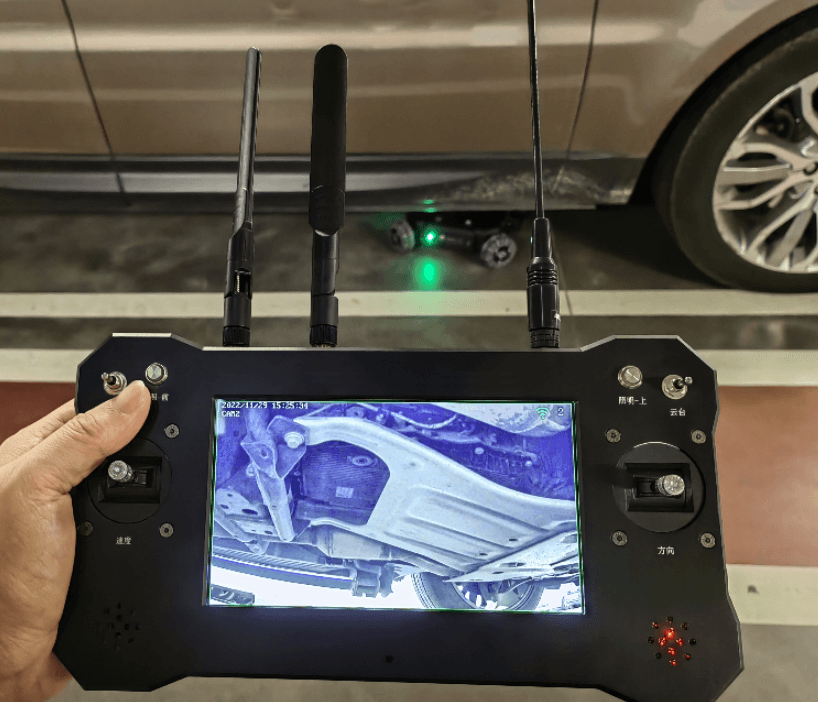

This product is suitable for inspecting vehicle chassis in security check areas such as temporary security checkpoints for large events, as well as for inspection of subway cars, tracks, and other areas. It is primarily used in scenarios like subway cars, large conferences, large parking lots, and customs ports, specifically for inspecting various vehicle chassis and under-seat areas of cars. The robot uses wireless image transmission to inspect the bottom of vehicles, detecting and assisting in the removal of suspicious dangerous goods underneath.

III. Parameters of the main robot

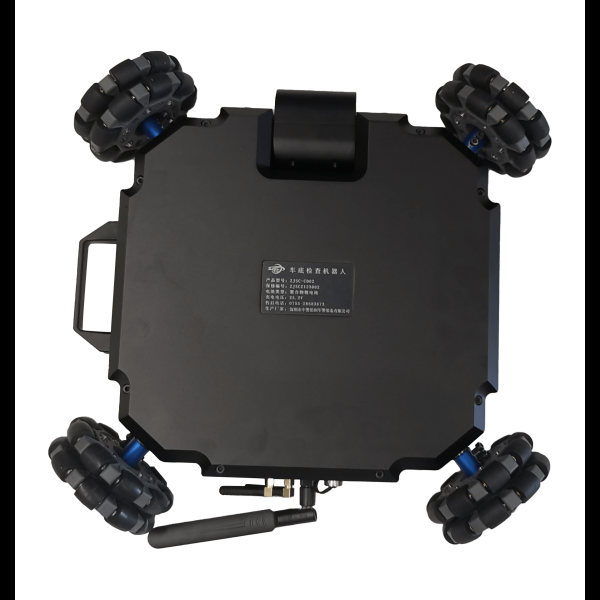

1. The vehicle inspection robot adopts a metal shell design, which is resistant to impact, drop, wear, and has strong ductility, making it more suitable for field operations.

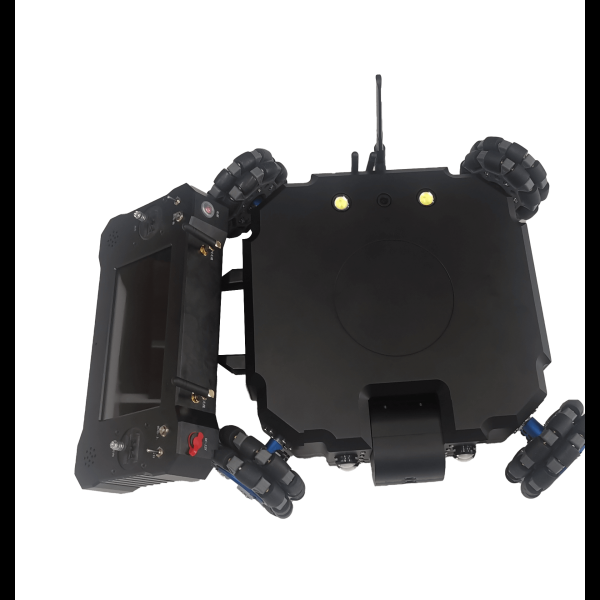

2. Dimensions: Length * Width * Height 400*400*100mm

3. The system is powered by a 24V, polymer lithium battery;;

4. The console features a battery level indicator, with a red light indicating power feeding and a green light indicating full charge.

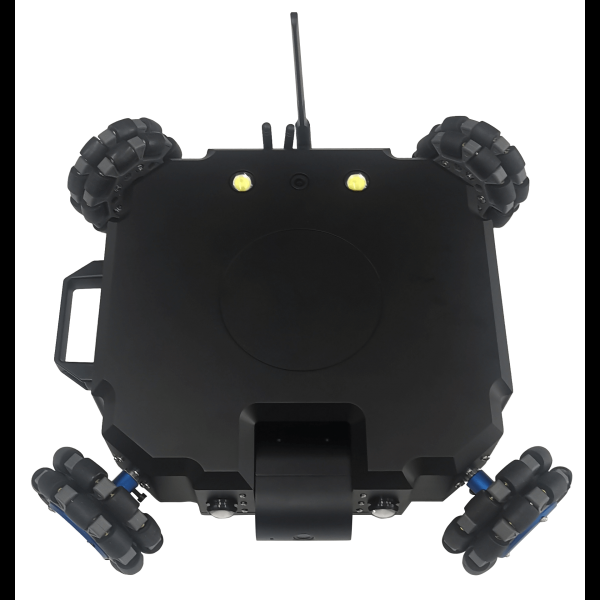

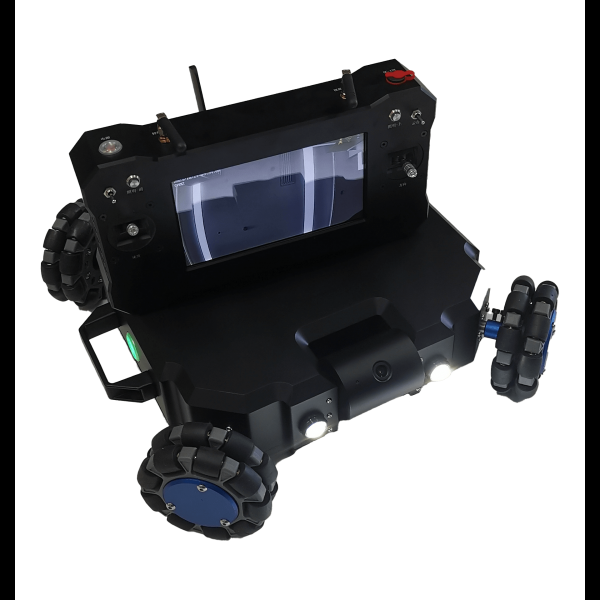

5. The vehicle bottom inspection robot is equipped with a color camera on each side, both in front and directly above;

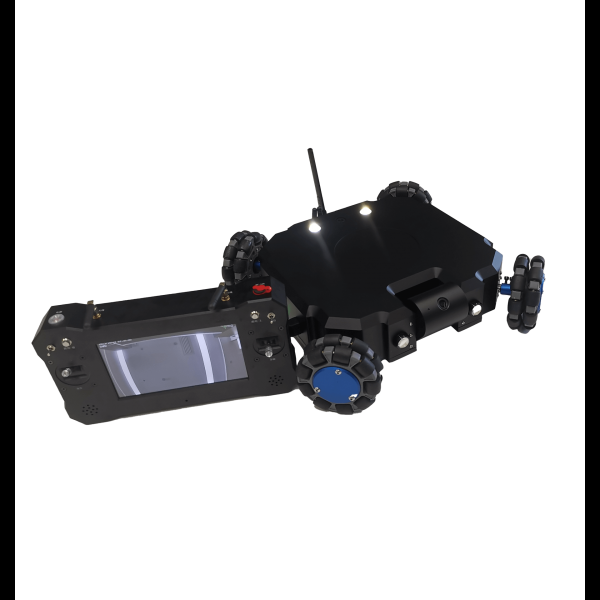

6. The vehicle bottom inspection robot is equipped with a total of four high-intensity LED lights located at the front and directly above;

7. The vehicle bottom inspection robot features stepless speed regulation and supports movement in any direction;

8. The wireless remote control distance is greater than 100 meters;

9. The height of the vehicle‘s chassis from the ground: 2CM.

10. Continuous working time is greater than 4 hours;

11. Lighting system: Two high-intensity LED lights on the front, with a night vision range of over 10 meters. There are also two high-intensity LED lights on the top.

12. Movement speed: ≥1m/s in any direction, infinitely adjustable speed;

13. Rotation angle: 360°;

14. Gimbal tilt: The camera angle can be adjusted by remote control, with a range of 90 degrees up and down;

15. Obstacle-surmounting capability: ≤25mm minor ground undulations

16. Climbing ability: ≤35° gentle slope road?

17. Relative humidity: 0-95%?

18. Camera pixel: 1080P

19. Camera lens: Wide-angle lens with a wide range of not less than 120°?

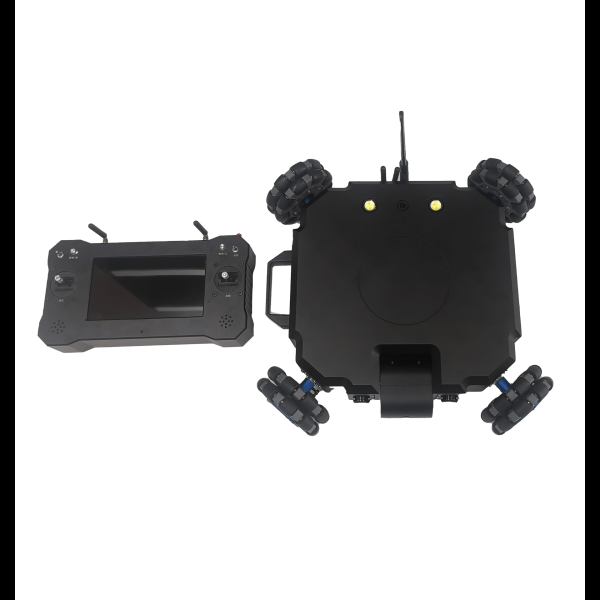

IV. Remote command and control console

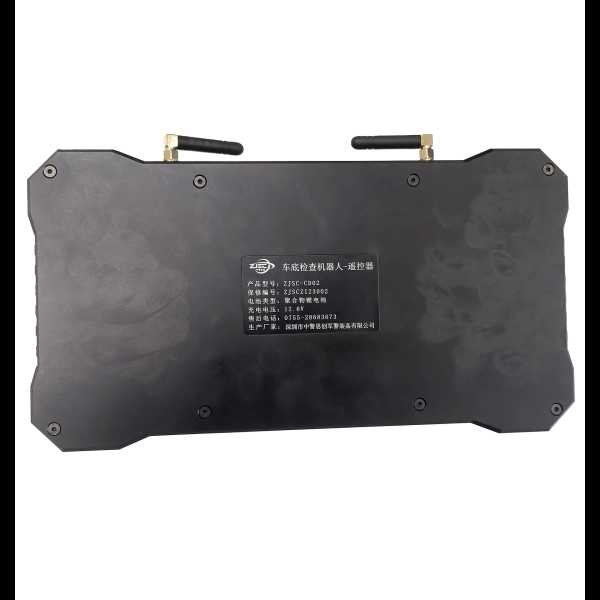

1. The remote control console adopts a metal shell design, which is resistant to smashing, dropping, and wear, making it suitable for field operations.

2.7-inch color high-definition display, with a resolution of 1024*600

3. The display screen can switch between two different view angles, and can also independently display one channel of footage.

4. The screen features a zoom-in and zoom-out function.

5. The system is powered by a 12V supply and features a built-in polymer lithium battery, providing a working time of over 6 hours

6. Equipped with direction control buttons, it can control the movement of the vehicle body in any direction.

7. Equipped with a speed adjustment button, allowing control over the vehicle‘s movement speed.

8. Equipped with built-in lighting switches, allowing for control over the activation and deactivation of the vehicle‘s lights.

9. Equipped with a camera gimbal flipping function, allowing for controlled flipping up and down.

10. Equipped with a speaker, allowing real-time monitoring of on-site conversations.

20. Equipped with an antenna, it can achieve wireless transmission up to a distance of 100 meters with the robot underneath the vehicle.

21. A dedicated app can be downloaded on a mobile phone to synchronize live video footage.

22. The image can be flipped 180 degrees.

23. It possesses a data storage function, allowing for playback of historical image data, and can switch playback based on channels.

24. The remote control console supports switching between screens in ≥10 languages.
